A split system is the most popular way Australians cool and heat a single room, and for good reason: it is efficient, quiet, and quick to install. But the price of getting one fitted varies more than most people expect, and where the units go matters just as much as which unit you buy. A good install is what makes the difference between a system that runs cheaply for years and one that leaks, struggles or fails early.
This guide covers what split system installation costs in Melbourne, exactly what happens on the day, why placement changes the price, and how to make sure the job is done right. We install split systems across Melbourne every week, so this is the same advice we give our own customers.
in Melbourne, a single split system supplied and installed usually costs about $2,000 to $6,000 depending on capacity, with most living-area units around $2,800 to $4,500. The cheapest installs are back-to-back, where the indoor and outdoor units share a wall. Refrigerant and electrical work must be done by a licensed installer, which protects your warranty. A standard install is often finished in around half a day.

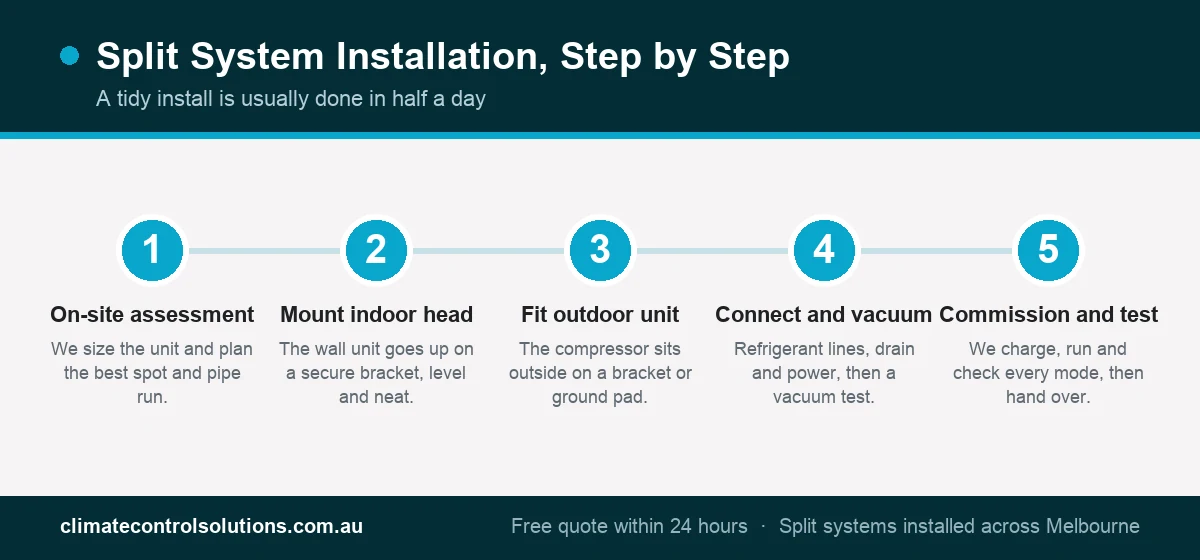

The installation process, step by step
A good split system install follows the same clear steps every time. None of it should be a mystery, and a tidy, methodical job is exactly what keeps the system running efficiently for years.
What happens on the day
On install day, the technician confirms the best spot for the indoor head and the outdoor unit, then mounts the wall bracket and fits the head level and neat. The outdoor unit goes on a bracket or ground pad, and the two are joined by refrigerant lines, a drain and electrical cabling.
Before the system is charged, the lines are vacuum tested to remove moisture and check for leaks. Only then is the refrigerant released, the system run through every mode, and the whole thing handed over to you. See our split system page for the units we install.
What split system installation costs in Melbourne
Price comes down to the size of the unit and the complexity of the install. Treat these as ballpark ranges for a quality system supplied and installed, rather than a fixed quote, since the pipe run and any electrical work can shift the figure.
| System | Best for | Supplied and installed |
|---|---|---|
| Small split, about 2.5 kW | Bedroom or study | $2,000 to $3,500 |
| Medium split, 3.5 to 5 kW | Living area | $2,800 to $4,500 |
| Large split, 7 to 8 kW | Open-plan living | $3,500 to $6,000 |
| Multi-head, 2 to 3 rooms | Several rooms | $4,500 to $9,000 |

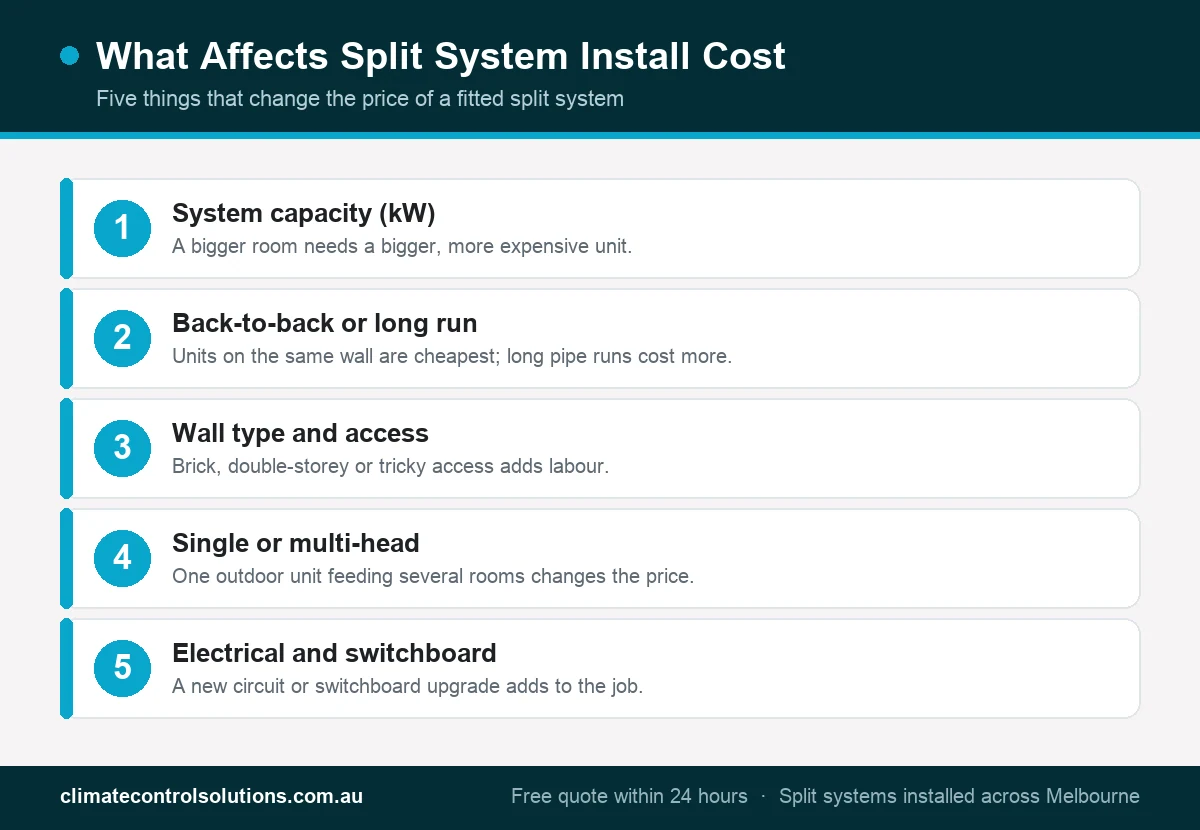

What affects the cost
If two quotes come back different, it is almost always one of these five things. Knowing them helps you compare quotes fairly.
Back-to-back vs a long pipe run
The single biggest thing you can do to keep the price down is placement. When the indoor head and the outdoor unit sit on opposite sides of the same wall, the pipe run is short, the labour is quick, and the cost is at its lowest. This is a back-to-back install.
When the outdoor unit has to go somewhere further away, every extra metre of refrigerant pipe, cabling and cable duct adds materials and time. It is often still the right call for looks or noise, but it is worth knowing it is where a chunk of the cost difference comes from.
Why a licensed install matters
Split system installation is licensed work, not a DIY job.
Handling the refrigerant requires an ARC licence, and the electrical connection must be done by a licensed electrician. An unlicensed install is illegal, can be dangerous, and will void your manufacturer warranty.
Beyond the rules, a proper install is what makes the system efficient. Skipping the vacuum test, overcharging the refrigerant or a sloppy pipe run are common reasons units run poorly or fail early. Our technicians are fully licensed, so the job is done right the first time.
One room or several?
If you only need one room done, a single split system is the simplest and cheapest option. If you want a few rooms handled from one outdoor unit, a multi-head system keeps the outside of your home tidy while giving each room its own control.
Single split
Best for one bedroom, study or living area. Lowest upfront cost and the quickest install.
Multi-head split
One outdoor unit, several rooms, each controlled on its own. See our multi-head guide.
Whole home
For every room at once, a ducted reverse cycle system may suit better.
Still deciding?
Not sure which cooling type fits? Start with our evaporative vs refrigerated guide.
What this means for Melbourne homes
Split systems are a great fit for most Melbourne homes, because reverse cycle units cool through our hot, dry summer days and heat efficiently through the cold winters, all from one wall unit per room. Whether it is a single bedroom or a few rooms across the house, a properly sized and installed system pays for itself in comfort and low running costs. Check our areas we service to confirm we cover your suburb.
Brand choice nudges the price too. For indicative installed prices per brand see our Mitsubishi Electric, Daikin, Fujitsu and Panasonic pages, or compare every option on our air conditioning brands guide.
Frequently asked questions
How much does split system installation cost in Melbourne?
For a quality unit supplied and installed, a single split system in Melbourne usually runs from about $2,000 for a small bedroom unit to around $6,000 for a large open-plan system. A multi-head setup covering several rooms is more, often $4,500 to $9,000. The capacity you need, the pipe run and any electrical work all move the price, so a free on-site quote is the most accurate way to know.
How long does it take to install a split system?
A straightforward back-to-back single split system is often installed in around three to four hours, or roughly half a day. Longer pipe runs, upper-storey installs, brick walls or a multi-head system take longer. We give you a clear timeframe with your quote.
What is a back-to-back installation?
Back-to-back means the indoor head and the outdoor unit sit on opposite sides of the same wall, so the pipe run between them is very short. It is the quickest and cheapest way to install a split system. When the two units have to be further apart, the extra pipe, cabling and labour push the cost up.
Can I install a split system myself?
No. Connecting and charging the refrigerant is licensed work under Australian regulations, and the electrical connection must be done by a licensed electrician. A DIY or unlicensed install is illegal, unsafe, and will void the manufacturer warranty. Always use a licensed installer.
Does the installation affect the warranty?
Yes. Most manufacturers require the system to be installed by a licensed technician for the warranty to be valid, and a poor install is one of the most common reasons units fail early. A correct install protects both your warranty and the efficiency of the system.
What size split system do I need?
It depends on the room size, ceiling height, insulation and how much sun the room gets. As a rough guide, a small bedroom might need about 2.5 kW while a large open-plan living area can need 7 kW or more. We size it properly on site, because an undersized unit struggles and an oversized one wastes money.
Can one outdoor unit run several rooms?
Yes, that is a multi-head split system: one outdoor unit connected to several indoor heads, each controlled separately. It saves outdoor space and suits homes doing a few rooms at once. Our multi-head split system guide explains how it works.
Do you install split systems for heating too?
Yes. Almost all modern split systems are reverse cycle, so the same unit that cools your room in summer also heats it efficiently in winter. It is one of the cheapest ways to heat a single room.
Ready to get a split system installed?
Get a fixed quote from a licensed installer, with honest advice on sizing and placement to keep the cost down. Book a free assessment and we will get back to you within 24 hours.
